Melt pressure operates as the invisible hand guiding extruded polystyrene (XPS) manufacturing. It is the critical variable determining cell structure, foam density, and overall yield. When raw polystyrene mixes with blowing agents under intense heat, the resulting solution requires precise pressure parameters to remain stable. If this pressure fluctuates, the gas expands chaotically upon exiting the die.
Inconsistent pressure leads directly to dimensional instability. Manufacturers often face high scrap rates, irregular board thicknesses, and compromised compressive strength when their lines surge or stall. These defects cripple production efficiency and erode product margins.
This article provides an engineering and operational framework for evaluating modern extrusion equipment. We will explore how a high-quality machine regulates internal forces. By understanding these mechanical and software components, you can objectively assess equipment specifications and secure a reliable, high-yield production line.
Melt pressure stability directly correlates with dimensional accuracy, directly impacting XPS board flatness control and scrap reduction.
Effective regulation requires a synchronized system: optimized XPS extrusion screw design, highly calibrated melt pumps, and responsive closed-loop PLC controls.
Evaluating an extrusion line requires looking beyond baseline capacity to assess the precision, lifespan, and redundancy of its melt pressure transducers and software algorithms.
Upgrading to automated, closed-loop pressure control significantly reduces operator dependency and stabilizes the XPS foam extrusion process during gas injection phases.
To understand extrusion yield, we must examine the physics of foaming. Inside the extruder barrel, polystyrene resin and blowing agents mix into a single-phase fluid. High internal pressure keeps the gas dissolved within the polymer matrix. As this mixture travels toward the die, it experiences a calculated pressure drop. This rapid drop forces the gas out of solution, triggering nucleation. Millions of microscopic bubbles form and expand simultaneously.
When melt pressure remains absolutely constant, these cells grow uniformly. Uniform cellular expansion yields a tight, closed-cell structure. However, if pressure surges or dips, nucleation becomes erratic. Some cells over-expand while others collapse.
This cellular chaos directly impacts dimensional stability. Pressure surging translates immediately into thickness variations across the width of the extrusion die. Maintaining reliable XPS board flatness control requires a steady volumetric flow. When pressure fluctuates, the die lip spits out uneven material. The board warps, edges curl, and the final product fails to meet strict construction tolerances.
These fluctuations severely damage production run economics. Poor pressure control increases start-up waste exponentially. Operators spend hours tweaking manual valves to stabilize the line, generating massive amounts of out-of-spec scrap in the process. Every warped board represents wasted resin, lost blowing agent, and consumed energy. By stabilizing the internal environment, manufacturers drastically reduce scrap rates and maximize their marketable yield.

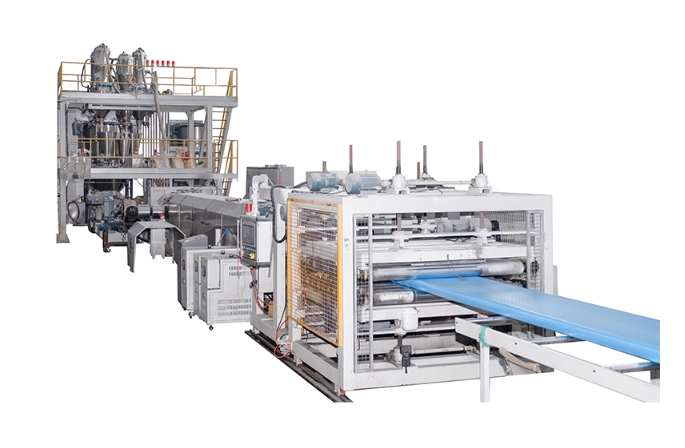

Regulating internal forces requires a synchronized network of mechanical components. A modern extrusion line relies on a highly engineered architecture to build, maintain, and monitor fluid dynamics from the feed throat to the die lip.
Extrusion Screws: The journey begins in the primary melting extruder, typically a twin-screw configuration. This section shears and melts the raw polymer. The melt then transfers to a secondary single-screw extruder designed for cooling. The transition between these zones demands meticulous XPS extrusion screw design. Specific flight geometries and compression ratios build initial pressure gently. They prevent material backflow and ensure consistent forward conveying without degrading the polymer chains.
Melt Pumps (Gear Pumps): Installed between the extruder and the die, melt pumps act as the ultimate stabilizing force. They consist of counter-rotating intermeshing gears. These gears grab exact volumes of plastic and push them forward. A melt pump isolates the die from any surging happening upstream in the extruder barrel. It delivers a mathematically constant volumetric flow, guaranteeing stable die pressure regardless of minor screw fluctuations.
Melt Pressure Transducers: You cannot control what you cannot measure. Transducers are high-temperature sensors tapped directly into the barrel wall and die block. They continuously read the internal pushing force of the fluid. Strategic placement is vital. You need sensors before the screen changer, before the melt pump, and immediately before the die lip.
Blowing Agent Injection Ports: Introducing gases like CO2, ethanol, or fluorocarbons disrupts the polymer melt. As high-pressure pumps force liquid gas into the barrel, the internal environment shifts dramatically. Dynamic mechanical compensation must occur instantly to maintain equilibrium. This delicate interaction dictates the success of the entire XPS foam extrusion process.
Even with premium architecture, operational realities often introduce instability. Diagnosing these issues quickly separates profitable plants from struggling ones.
Inconsistent bulk density of recycled feedstocks is a primary culprit. When you feed light, fluffy regrind into the hopper alongside dense virgin pellets, the extruder flights fill unevenly. This creates momentary voids in the melt stream, resulting in sudden pressure drops. Irregular screen pack blockages also cause issues. As contaminants build up on the filtration mesh, backpressure spikes upstream while downstream pressure starves. Additionally, blowing agent pump cavitation can inject air pockets into the stream, causing erratic pressure spikes.
These minor anomalies trigger a severe cascade effect. A small 2% pressure drop near the injection zone seems negligible. However, as that starved melt reaches the die lip, the lack of compression allows blowing agents to boil off prematurely. You experience catastrophic cell collapse, surface tearing, and ruined boards.
Modern machines utilize advanced hardware to counteract these drops preemptively. Automated continuous screen changers swap out dirty filters without halting production, preventing pressure spikes. Variable frequency drives (VFDs) on the main motors allow the system to instantly ramp up RPMs to fill sudden melt voids.
Symptom | Root Cause | Cascading Effect | Machine-Level Mitigation |
|---|---|---|---|
Gradual upstream pressure spike | Screen pack contamination | Downstream starvation; flow reduction | Continuous dual-piston screen changer |
Rapid, erratic surging | Inconsistent regrind bulk density | Uneven die flow; board thickness variations | Gravimetric loss-in-weight feeders |
Sudden pressure drop at die | Blowing agent pump cavitation | Premature foaming; cell collapse | VFD-controlled continuous metering pumps |
When purchasing new equipment, you must evaluate the control systems rigorously. Look beyond the baseline output capacity. The true value of a machine lies in its sensory precision and software logic.
Start with sensor quality. Transducers must feature high-temperature ratings capable of surviving continuous exposure to corrosive blowing agents. Mercury-free sensors are now the industry standard for safety and environmental compliance. Evaluate their response times. A sensor that lags by two seconds is useless for real-time control.
Next, assess the programmable logic controller (PLC) integration. True XPS melt pressure control is entirely closed-loop. Does the machine's software automatically adjust screw RPM and melt pump speed based on real-time transducer feedback? If the screen pack clogs slightly, the PLC should instantly speed up the extruder to maintain constant pressure at the die head. It should do this without requiring an operator to touch a dial.
Redundancy and failsafes protect your investment. Over-pressure events can crack barrels or blow out die lips, causing dangerous blowbacks. Evaluate the physical failsafes, such as mechanical rupture disks, paired with automated software shutdown sequences.
Demand vendor transparency. Ask original equipment manufacturers (OEMs) about their historical data logging capabilities. Can the machine export standard deviation tolerances from past runs? If a vendor cannot prove their system holds pressure within a tight percentage margin, proceed with caution.
Feature | Basic Extrusion Control | Advanced Closed-Loop Control |
|---|---|---|
Sensor Feedback | Manual readouts on analog dials | Real-time digital PLC integration |
Adjustment Mechanism | Operator manually turns VFD knobs | Automated PID algorithmic adjustments |
Data Logging | None or manual clipboard entry | Cloud-based historical data tracking |
Response Time | Minutes (human reaction dependent) | Milliseconds (machine automated) |
Advanced control systems only perform well when maintained properly. Implementing these technologies requires strict operational discipline.
Calibration routines are non-negotiable. You must regularly zero and calibrate pressure transducers to prevent baseline drift. Crucially, you must perform this zeroing at operating temperatures. If you zero a cold sensor, the subsequent thermal expansion of the metal barrel will skew the readings, giving you false data during production.
Plan for inevitable wear and tear. Processing highly abrasive recycled resins degrades screw flights and barrel walls over time. As the gap between the screw and the barrel widens, material slips backward. This slippage destroys pumping efficiency and leads to irreversible pressure loss. When operating a premium XPS board extrusion machine, you should utilize bimetallic armored screws and plan for scheduled refurbishment based on operational hours.
Best Practices for Maintenance:
Always clean sensor diaphragms with a brass wire brush; never use hardened steel tools.
Establish a strict torque spec for installing transducers to prevent thread damage.
Log the baseline pressure of your melt pump monthly to monitor internal gear wear.
Finally, address operator training. Transitioning from manual pressure monitoring to advanced automated dashboards involves a steep learning curve. Operators accustomed to "feeling" the machine must learn to trust the PLC logic. Invest in comprehensive training to ensure your team understands how the closed-loop system responds to their inputs.
Robust melt pressure regulation is not an optional luxury. It serves as the fundamental baseline requirement for any competitive foam board manufacturing operation. Without it, you cannot achieve the dimensional stability necessary for modern construction markets.
The right extrusion equipment eliminates guesswork. By utilizing precision transducers, engineered screw metallurgy, and closed-loop PLC logic, advanced machines minimize human error. They react to pressure fluctuations in milliseconds, stabilizing the melt long before defects reach the die lip.
As you evaluate your next equipment investment, demand evidence. Encourage buyers to request empirical pressure stability data and detailed transducer specification sheets. Ask your shortlisted manufacturers for a live operational trial to witness their closed-loop systems handle dynamic gas injections firsthand.
A: Industry-standard tolerances typically fall within ±1% to 2% of the targeted set point. Deviating beyond this narrow window drastically impacts board density. Pressure drops cause premature cell nucleation and collapse, while spikes lead to over-expansion and warped dimensions. Tight variation guarantees uniform cell geometry.
A: Specific flight geometries and optimized compression ratios prevent molten material from flowing backward over the screw flights. A well-designed screw ensures consistent forward conveying and gently builds pressure in transition zones. This mechanical stability prevents the erratic surging that typically ruins foam cell structures.
A: A melt pump effectively isolates the die from upstream surging by delivering a constant volumetric flow. However, it provides only a partial fix. It cannot repair fundamental screw wear, severe barrel degradation, or upstream feeding inconsistencies. You must fix upstream mechanics for a complete solution.
A: Lifespan depends heavily on operating hours and material abrasiveness. Typically, sensors last 12 to 24 months in standard environments. Abrasive recycled resins accelerate diaphragm wear. Adherence to proper cleaning protocols during line shutdowns prevents physical damage, significantly extending the operational life of the transducer.
