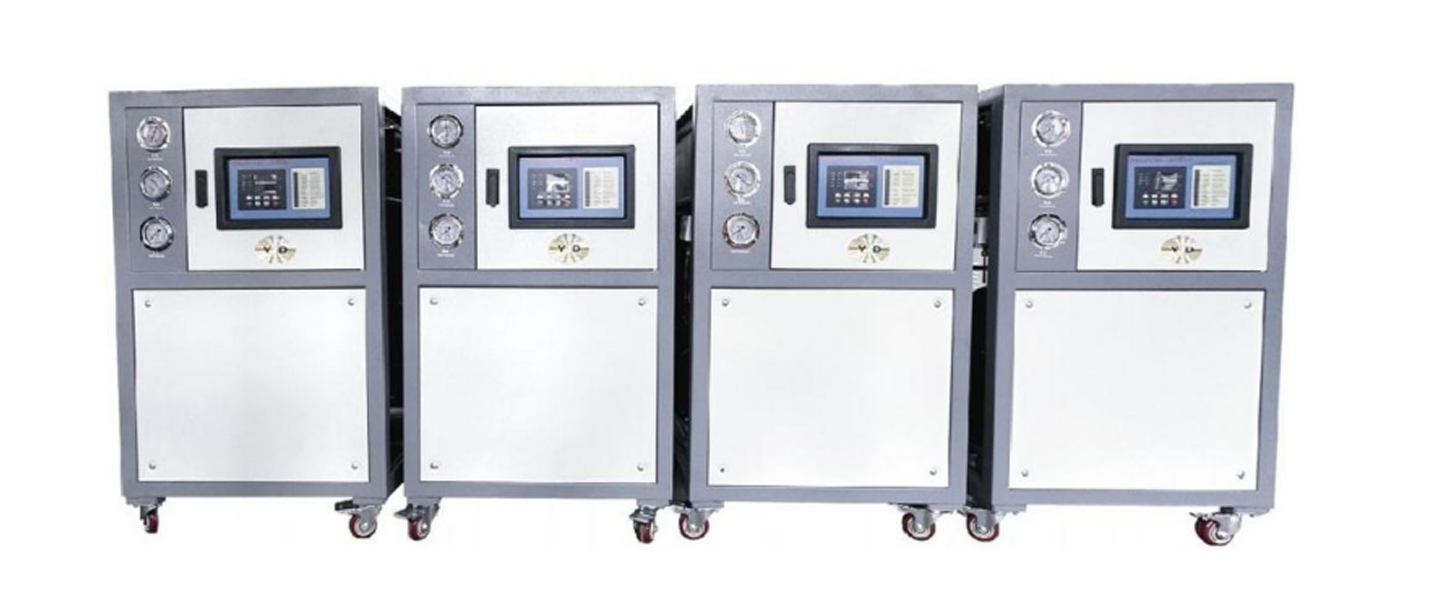

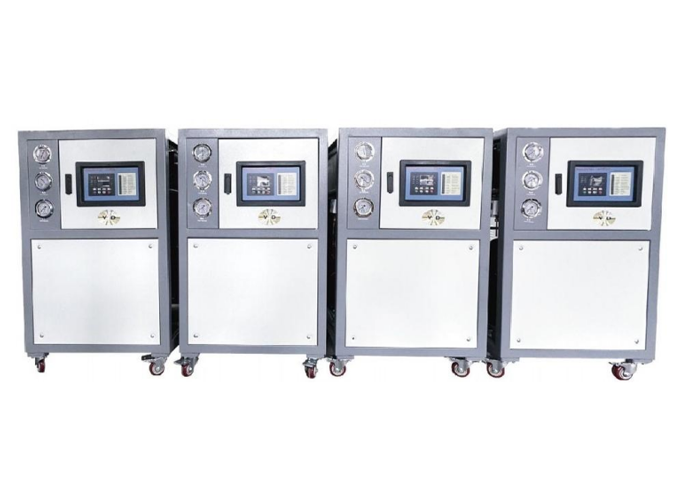

Industrial Water Chiller for Plastic Processing & CNC Machine Cooling

Water-Filled Type Chillers

This equipment utilizes the shearing and impacting action between a high-speed rotating disc and a stationary disc to achieve efficient material size reduction.

Contact Us >

Collaborative Partners

Functional Features

■ New imported compressor and efficient shelland tube condensing machine,evaporator combination,super class strong refrigeration, quiet power saving.

■ The new American valley wheel(Copeland) compressor and shell and tube condenser, all stainless steel shel and tube evaporator, the water pump adopts the well-known domestic brand: South,the refrigeration accessories adopt the American brand: EMERSON

■ All stainless steel 304 open water tank, clear, easy to maintain fast.

■ The refrigerant is generally R22, and environmentally friendly refrigerant can also be selected according to different countries and regions: R407C.R404A.R134a.

■ The electrical parts are the international brand "Schneider" (Schneider),the origina factory authentic,to ensure the stable operation of the machine.

■With a precision electronic temperature controller, can accurately control the water temperature within 3℃ to 35℃ .

■ With current overload protection, high and low pressing and electronic time delay and other complete safety protection devices, abnormal indicating system.

■Screen at the same time LCD display cold water outlet, cold water inlet and set temperature(selection); There are single, double, four units, high energy efficiency; Through industrial modeling design, beautiful appearance, optimize human-machine relationship.

■ Four-unit combination, high energy efficiency; Through industrial modeling design, beautiful appearance, optimize human-machine relationship.

■ A cooling tower must be installed when in use

Water-Flled Type Chillers

paramate	Model	3S	5S	8S	10S	12S	15S	20S	25S	30S	40S	50S
Refrigerating capacity	KW50Hz	8.7	14.5	23.2	29	34.8	43.6	52.3	72.6	87.2	116	145
Refrigerating capacity	Kcal/Hr	7500	12500	20000	25000	30000	37500	45000	62500	75000	100000	125000
Motoripupt	KW	2.8	4.3	6.8	8.4	10.1	13.1	17.3	21.3	25.6	33.1	50
Output Power	HP	3	5	8	10	12	15	20	25	30	40	50
Power Source	Volt	3N-380V/50Hz
Refrigerant	Name	R22
	Charge Amount	1.70	2.80	4.4	2.8*2	6.8	4.2*2	5*2	6.8*2	8.4*2	5*4	6.8*4
	Control Type	With Hermetic Gyral Or Piston
Compressor	Type	Fully Enclosed Scroll Type
Compressor	Motor Kw	2.25	3.75	6	3.75*2	9	5.5*2	7.5*2	9.4*2	11.3*2	7.5*4	9*4
Evaporator	Type	High Efficiency External Threaded Shell Tube Type
Condenser	Type	Shell and tube type
	In / Out Pipe Size	1”	1”	1 1/2”	2”		2 1/2”			3”
	acHno	35	55	90	110	130	160	210	260	320	400	520
Chilled Water	Flow L/min	60	60	200	250	250	400	400	400	650	800	800
	TankL	45	55	85	85	150	180	200	240	280	400	5001”
	In/Out Pipe Size	1”	1”	1.5”	1.5”	1.5”	2”	2”	2”	2 1/2”	2 1/2”	2 1/2”
Water Pump	Motor Kw	0.55	0.55	1.5	2.2	2.2	2.2	3	3	4	4	4
Water Pump	Raise Kpa	200	200	200	205	205	205	220	220	280	280	280
Overall Dimenson	L	1060	1320	1440	1600	1600	1790	2200	2250	2400	2600	2600
	W	660	660	830	860	860	1000	1000	1000	1100	1200	1200
	H	1200	1200	1400	1400	1400	1450	1600	1600	1800	1800	1800
	kg	180	280	350	450	500	600	800	900	1100	1400	1500
Protective Device	Compressor	Overload Relay
	Pumping	Overload Relay
	Air Blower	Overload relay
	Freezing Circuit	Hich And Low Dressure Switchlantifreeze Switch
	Water Circuit	Water Tank Level Switch (Optional)/Bypass Valve

Scope Of Application

Applied to plastic processing machinery mold cooling, can greatly improve the surface finish of plastic products,reduce the surface marks and internal stress of plastic products,so that the product does not shrink,no deformation,easy to release plastic products, accelerate product styling,thus greatlyimproving the production efficiency of plastic forming machine.

Used in CNC machine tools,jig boring machine,machining center, combined machine tools and allkinds of precision machine tool spindle lubrication and hydraulic system transmission media cooling,can accurately control the oil temperature,effectively reduce the thermal deformation of the machine tool,improve the machining accuracy of the machine tool.

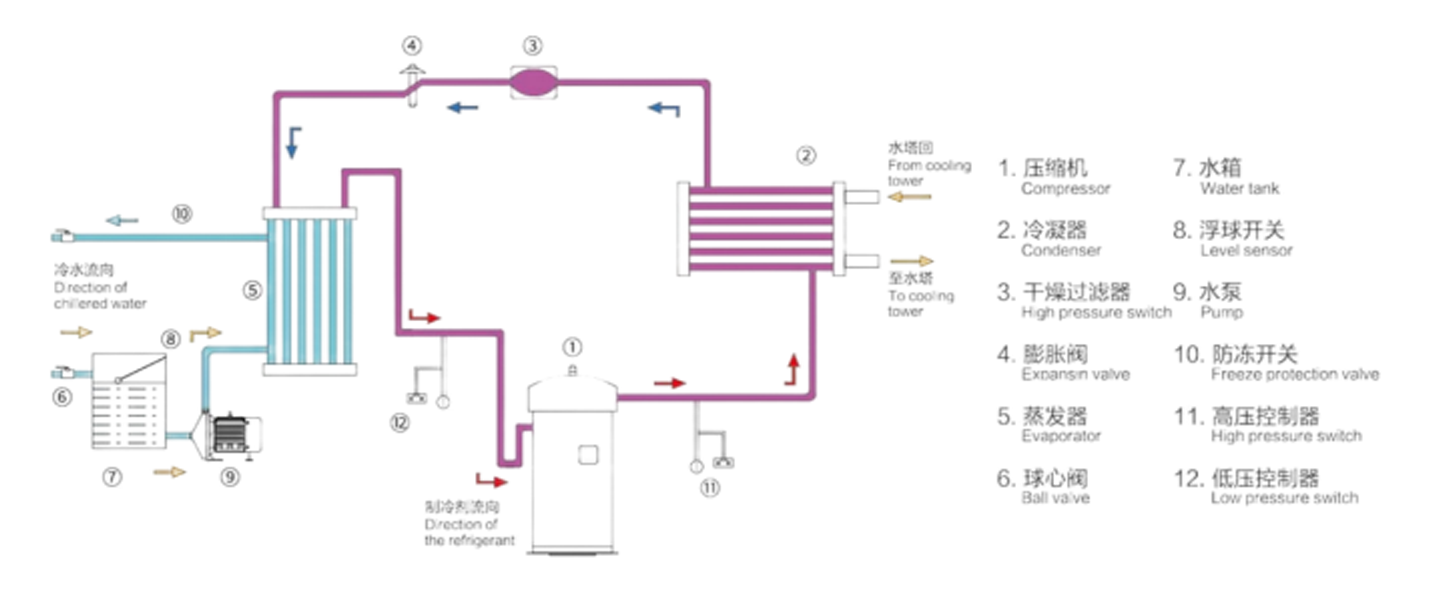

Working Principle
