KT Board Production Line

As a leading domestic manufacturer of mechanical production lines, our KT board production line is equipped with premier carbon dioxide injection and precision control technology, recognized as one of the finest in China. This core technology significantly optimizes the cell structure of the board core, resulting in KT boards that are not only lightweight but also exhibit superior surface flatness, more uniform internal stress distribution, and enhanced compressive resistance and rigidity. The fully automated line design—from intelligent feeding and precision extrusion to gas injection and efficient fixed-length cutting—ensures stable, efficient, and energy-saving operation. It is particularly suited for demanding applications in fields such as advertising display panels, architectural decoration, and high-end packaging, providing robust support for product upgrading and differentiated market competitiveness.

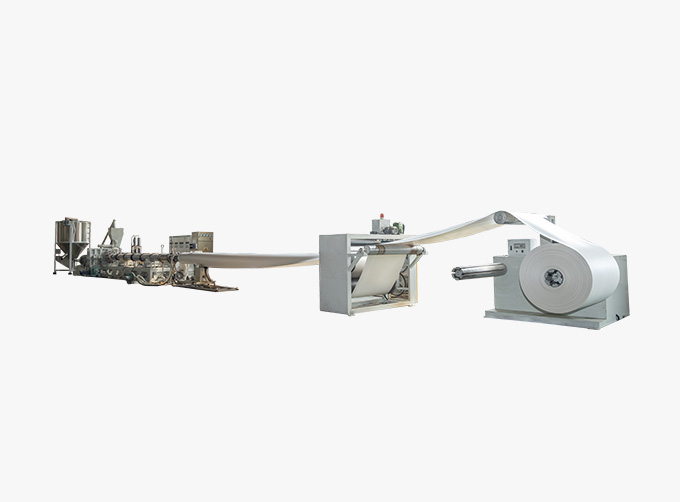

MXZ KT board production line with PS foam core extrusion and paper lamination unwinder

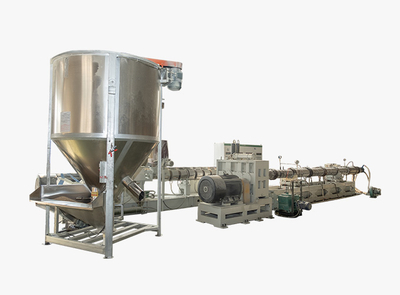

KT board laminating machine for advertising foam board with roll to roll paper feeding

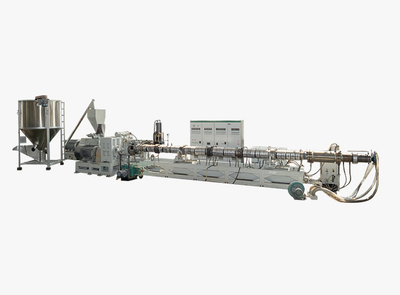

Turnkey KT board making machine line for signage boards with automatic lamination and rewinding

Collaborative Partners

Product Features and Models

Our KT board production line is driven by industry-leading CO₂ injection technology, integrating precision manufacturing and intelligent control. It offers the following key features:

Leading Core Foaming Technology: Equipped with China’s premier supercritical CO₂ physical foaming system, it achieves precise control and highly efficient molding of the cell structure. The resulting boards are lightweight, exceptionally flat, strong and durable, with excellent thermal insulation and soundproofing performance.
High Efficiency & Stable Production: The fully automated line ensures high-precision control from raw material dosing and co-extrusion to automatic cutting and stacking. The process is smooth, highly efficient, and reliable, significantly boosting output and product consistency.
Outstanding Energy Efficiency: Optimized screw design, efficient temperature control, and heat recovery systems, combined with the inherent eco-friendliness of the physical foaming process, substantially reduce energy consumption and operational costs.
High Flexibility & Adaptability: Its modular design allows for flexible configurations. It can be customized to produce KT boards of various widths, thicknesses, densities, and surface textures, enabling a quick response to diverse market demands.
Intuitive & Smart Operation: Features a user-friendly intelligent HMI (Human-Machine Interface) and remote monitoring capabilities. It is easy to operate, includes fault diagnosis and production data management functions, reducing dependence on operator experience and improving management efficiency.

Extensive and Flexible Configuration Options:

Board Thickness: 1-5 mm
Board Width: 600 - 1400 mm
Throughput Capacity: 300 -500 kg/h

Model	Throughput (kg/h)	Transformer Required	Reference Size（m）
65-150	300~350 KVA	280 KVA	50126
75-160	400~500 KVA	320 KVA	50126

High-Efficiency and Stable PS Sheet Extruder

As the core component of the PS underlayment production line, our PS sheet extruder is specifically designed for high-ratio CO₂ foaming technology. It performs the critical task of uniformly mixing PS raw materials with the foaming agent, plasticizing, and steadily extruding the initially foamed slab. Its exceptional performance serves as the foundation for ensuring the superior quality of the final product and the continuous, stable operation of the entire production line.

Core Design Features:

High efficiency PS sheet extruder for KT board production line with stable foaming and mixing

Dedicated High-Efficiency Screw Design: Utilizes a specialized screw with deep flights and a large length-to-diameter ratio, optimized for the viscosity changes of the material after CO₂ injection, providing powerful conveying, shearing, and mixing capabilities.
Ensures molecular-level uniform mixing of the PS melt and CO₂, laying a solid foundation for the subsequent secondary foaming and fundamentally guaranteeing the consistency of the slab density.

Corrosion-Resistant Alloy Barrier Section: The melting section of the screw is made from special corrosion-resistant alloy, effectively resisting acidic substances produced by the decomposition of CO₂ under high temperature and pressure.
Significantly extends the service life of the screw, avoids downtime caused by corrosion, and ensures continuous and stable production.

Precise CO₂ Injection and Homogenization System: Integrates a supercritical CO₂ metering and injection unit, achieving ultra-uniform dispersion of CO₂ within the PS melt through multi-stage dispersion and mixing elements.
A precise temperature control system (±1°C) ensures stable melt conditions, representing the technological core for achieving a high 40% CO₂ injection rate and maintaining process stability.

Intelligent Control System: Equipped with an independent PLC control system that monitors and automatically adjusts screw speed, zone temperatures, melt pressure, and CO₂ injection volume in real-time.
Seamlessly integrates with the production line's main control system, enabling one-touch start/stop, parameter recording, and fault alarm functions for easy operation and maintenance.

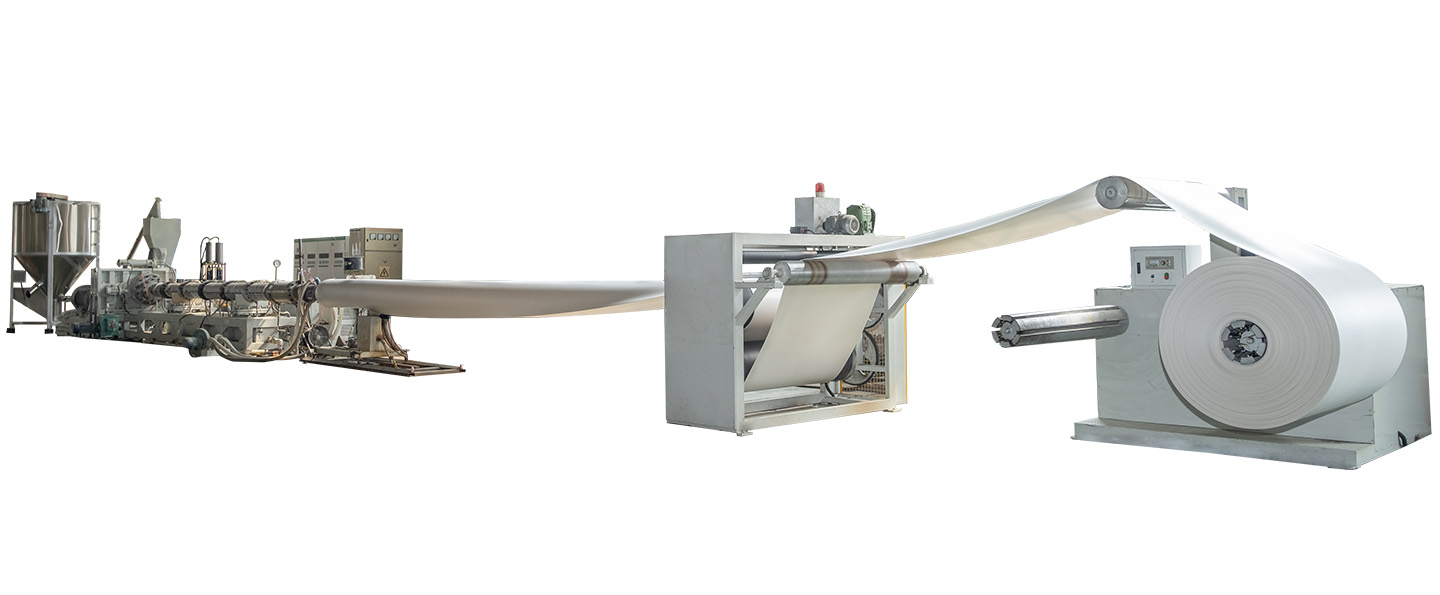

Unwinding and rewinding system for KT board line gas release before secondary processing

Unwinding & Rewinding System for Gas Release

Our unwinding and rewinding system is strategically integrated between the initial sheeting and secondary foaming stages. Its primary purpose is to manage the rolled material to facilitate the efficient release of internal gases—a critical preparation step that ensures optimal and uniform expansion during the secondary oven foaming process.

Key Operational Advantages:

Controlled Gas Desorption: The system unwinds the initially foamed sheet in a controlled manner, allowing the CO₂ and other blowing agents trapped within the cellular structure to begin desorbing evenly. This prevents the formation of large, uneven bubbles and promotes a consistent cell structure in the final product.

Process Synchronization: It acts as a vital buffer, seamlessly connecting the continuous extrusion process with the batch-oriented secondary foaming stage. This synchronization ensures a smooth material flow, maximizes line efficiency, and prevents bottlenecks.

Preparation for Subsequent Lamination: Following the gas release phase, the rewinding unit neatly recoils the material. This creates a tightly wound, manageable roll that is perfectly prepared for the next downstream process, such as lamination with other layers or packaging.

Laminating Machine and Paper Applying Machine

As the key downstream finishing units of the KT board production line, our laminating machine and paper applying machine are specifically designed to enhance product added value and surface quality, ensuring each board possesses an exceptional appearance and reliable functionality.

High-Precision Intelligent Laminating Machine

This equipment is dedicated to laminating various functional films (such as PVC glossy film, matte film, scratch-resistant film, UV-coated film, etc.) onto the surface of KT boards. It is the core component for achieving product visual enhancement and functional expansion.

Core Details & Advantages:

Precise Temperature & Pressure System: Utilizes a multi-zone independent PID temperature-controlled hot roller or hot air system, paired with high-precision pneumatic or hydraulic pressure devices. This ensures uniform film heating and constant pressure, achieving aperfect bond with zero bubbles, zero wrinkles, and no orange peel effect.

Fully Automatic Constant Tension Control: The entire line—from unwinding and feeding to edge trimming—is equipped with high-sensitivity tension sensors and servo control systems. This guarantees stable film tension throughout the lamination process, eliminating stretching deformation or wrinkling caused by tension fluctuations.

High-Efficiency Static Elimination & Cleaning: Integrated ionizing air bars and dust-removal brush units thoroughly clean the board surface and neutralize static electricity before lamination. This fundamentally solves surface defects caused by static-attracted impurities and enhances operational safety.

Optional Multi-Function Configurations:

Single/Double-Sided Lamination:Configurations are available for single-side or simultaneous double-side lamination based on requirements.
Online Cutting or Rewinding:Offers either online length-cutting and stacking synchronized with the production line, or large-diameter finished product rewinding configurations.
Quick Roll Change Mechanism:Equipped with pneumatic or mechanical quick roll change devices to minimize downtime.

Intelligent Control Interface:
Features a touch-screen central controller capable of storing process parameter recipes for various products, enabling one-touch recall for simple operation and efficient product changeovers.

Applicable Scenarios: High-end advertising display boards, adhesive signage, home decor panels, commercial boards requiring specific surface textures (e.g., high gloss, scratch resistance).

High-Speed & Efficient Paper Applying Machine

This machine is optimized for the high-speed, smooth application of various papers (such as decorative paper, woodgrain paper, solid color paper, etc.) onto KT board surfaces. It is the ideal choice for producing various types of lightweight decorative boards.

Core Design Features:

Paper applying machine for KT board production with high speed coating and bonding control

Efficient Adhesive Coating System: Employs an anilox roller or doctor blade precision coating head to uniformly apply water-based or solvent-based adhesives. The coating weight is precisely adjustable, ensuring an even adhesive layer, strong bonding, and economical glue usage.

Multi-Stage Pressing & Drying Process: Designed with preliminary pressing, main pressing, and multi-roller pressing units to ensure instant and tight bonding between the paper and substrate. Infrared or hot air drying sections can be configured based on the adhesive type to promote rapid curing,achieving instant initial tack and final strong bonding even at high production speeds.

Paper Edge Alignment & Guiding System:

quipped with a high-precision photoelectric edge guiding device to ensure the paper edges remain perfectly aligned throughout the application process, resulting in neat, aesthetically pleasing finished edges and reducing trim waste.

Optimized Design for Paper Characteristics:

Anti-Stretch Control:Optimized tension profiles prevent paper deformation, addressing its tendency to stretch.
Anti-Wrinkle Paper Guide System:Utilizes multiple sets of floating rollers and spreader rollers to ensure the paper is absolutely flat and wrinkle-free before entering the combining unit.

User-Friendly Operation & Maintenance:

Designed with easy-access glue tank cleaning and anilox roller replacement pathways, making maintenance simple and quick to ensure production continuity.

Applicable Scenarios: Indoor lightweight partitions, furniture backing boards, substrate for cultural and creative products, high-volume, cost-effective decorative boards.
Summary: Whether pursuing the ultimate surface effect and functionality via thefilm lamination process, or prioritizing efficiency and cost-effectiveness via thepaper application process, our equipment provides customers with a stable, efficient, and high-quality ultimate surface finishing solution. With precise mechanical design, intelligent control systems, and targeted detail optimization, they perfectly complement the upstream foamed boards, ultimately empowering the market competitiveness of the finished products.

Core Technologies

Our KT board production line integrates five core processes, combining industry-leading technological capabilities to ensure all-round excellence from substrate to finished product.

High-Proportion CO₂ Physical Foaming Technology

The production line employs a proprietary supercritical carbon dioxide physical foaming system, **achieving a CO₂ injection rate as high as 40%**. Through precise multi-stage pressurization and closed-loop temperature-pressure control, it ensures the efficient and uniform dissolution of a large volume of CO₂ into the polymer melt, forming an extremely fine and uniform microcellular structure. This technology is fundamental to achieving the board's ultra-lightweight nature, excellent thermal insulation, and high specific strength, offering dual advantages in material cost and environmental performance.

Industry-Leading Laminating & Surface Treatment Technology

The line integrates a top-tier precision laminating unit, utilizing multi-roller coordination, constant tension control, and intelligent temperature-pressure bonding processes. This ensures **perfect adhesion between the film and the KT board substrate, resulting in a flawlessly smooth surface completely free from water bubbles or air streaks**. The equipment comes standard with a high-efficiency ionized air anti-static system, **significantly reducing electrostatic buildup caused by friction during production. This eliminates surface defects from dust attraction and enhances operational safety**, ensuring a high-quality visual finish and a safe production environment.

Full-Process Intelligent Synergistic Control System

Powered by an industrial internet-based intelligent control center, the system performs millisecond-level dynamic adjustment and optimization of parameters across the entire process, including high-precision CO₂ injection and laminating. Through algorithmic models, it ensures perfect coordination between all process stages, acting as the "intelligent brain" for stable, efficient production and exceptional product consistency.

High-Efficiency Intensive Mixing Co-rotating Twin-Screw Technology

To address the challenges of high foaming agent injection, the co-rotating twin-screw extruder features an optimized screw configuration and length-to-diameter ratio. Its powerful distributive and dispersive mixing capabilities ensure **thorough and homogeneous integration of the large volume of CO₂ with the melt**, preventing bubble coalescence and collapse, and laying the foundation for uniform nucleation and stable cell growth, while effectively controlling energy consumption.

Precision Multi-Layer Co-extrusion & Gradient Temperature-Controlled Forming Technology

The line utilizes a modular multi-layer co-extrusion die and a multi-zone independent intelligent temperature-controlled forming system. This technology not only enables the production of structurally and functionally integrated boards but, more crucially, provides a precisely controlled pressure and temperature field for the **high-foam-content melt**. This guides the orderly expansion and setting of the cells, ensuring the boards achieve mirror-like flatness and precise thickness tolerance.

These five core technologies are interlinked, forming a complete system. **The combination of 40% high-injection-rate CO₂ foaming and industry-leading laminating technology**, in particular, not only gives the boards an excellent internal structure and physical properties but also guarantees impeccable surface quality and safety. This provides customers with a solid and comprehensive technological foundation for producing high-end, differentiated products.

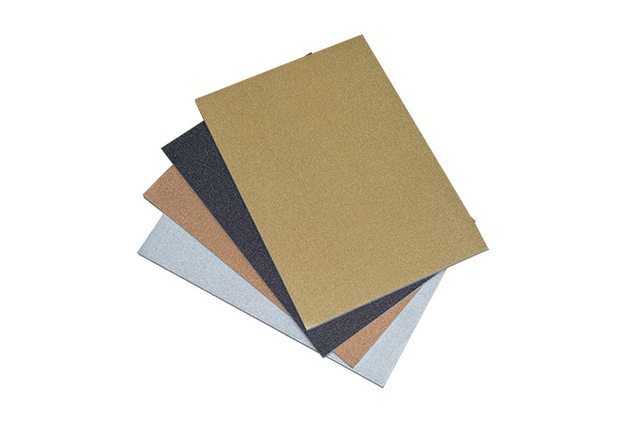

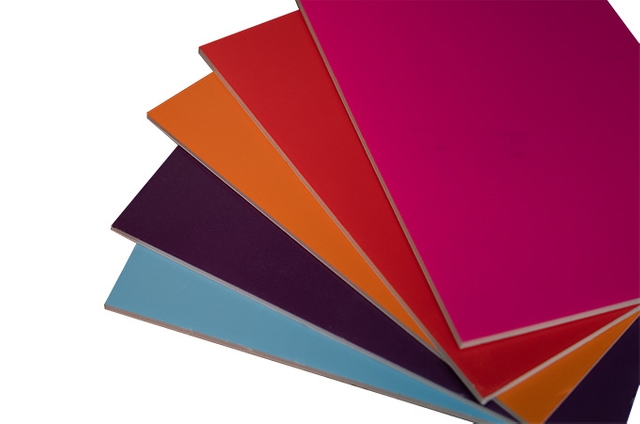

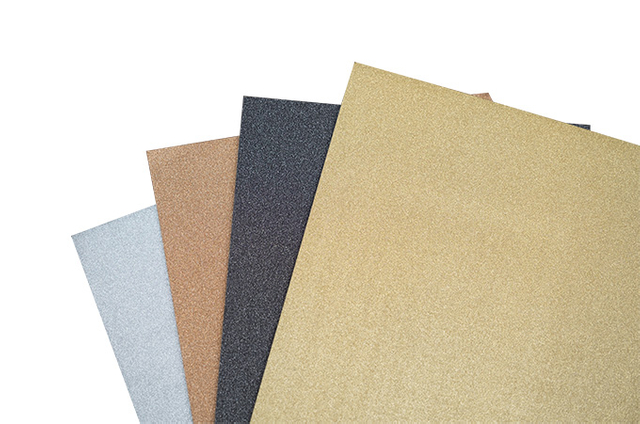

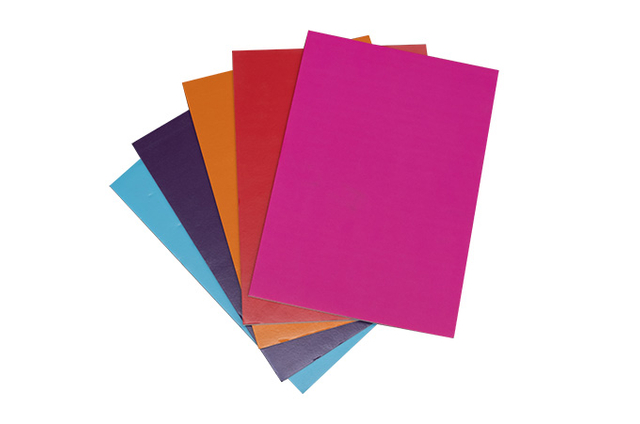

Practical Application Areas of KT Board

The high-quality boards produced by our KT board production line are extensively used across diverse industries due to their lightweight nature, high strength, excellent flatness, ease of processing, and superior surface finish. They have become an essential foundational material for numerous applications.

Advertising, Signage & Exhibition Display

Primary Use: This is the most traditional and high-volume application area for KT board.

Specific Examples:

Advertising Displays / Poster Backing:Ideal for store signage, X-stands, roll-up banners, and promotional posters. The surface is suitable for high-definition UV printing or laminating, delivering vibrant colors.
Exhibition & Event Setup:Used to construct temporary display walls, backdrops, dimensional letters, and product display stands. Its lightweight property allows for easy transportation and quick assembly.
Indoor & Outdoor Signage:Includes directional signs, information boards, and corporate feature walls. Surface laminating or painting meets various weather resistance requirements.

Architectural Decoration & Interior Design

Primary Use: Valued for its lightweight, easy-to-cut, and decorative qualities as a non-load-bearing material.

Specific Examples:

Interior Partitions & Wall Decor:Used to create lightweight partition walls, feature walls, and artistic decorative panels. Surfaces can be laminated with woodgrain paper, decorative paper, or custom prints.
Commercial Space Decor:Applied in ceilings, column wraps, and art installations for shopping malls, hotels, and showrooms.
Temporary Furniture Backing/Liner:Serves as backing for cabinets, drawer bottoms, or temporary furniture components.

Cultural, Creative, Educational & Retail Sectors

Primary Use: Leverages its ease of processing and cost-effectiveness for creative projects and product presentation.

Specific Examples:

Cultural/Creative Products & Model Making:A preferred material for DIY crafts, architectural models, school art projects, and science exhibits.
Retail & Display:Used for promotional stands, product display racks, shelf dividers, and premium packaging inserts.
Educational & Office Use:Functions as backing for whiteboards, bulletin boards, and project management boards.

Packaging & Industrial Applications

Primary Use: Utilizes its cushioning, protective, and lightweight properties for specific industrial needs.

Specific Examples:

Lightweight Protective Packaging:Acts as protective inner liners and trays for shipping precision instruments, artwork, and mirrors.
Sample Boards & Padding:Used in textiles, printing, and similar industries as sample backing or temporary padding.
Specialized Uses:Can be laminated with functional films (e.g., anti-static) for temporary partitions in controlled environments.

Why Choose KT Boards from Our Production Line?
The broad applications listed above share common demands for core board qualities:flatness, light weight, rigidity, ease of processing, and a stable surface finish. Our production line's technological strengths directly address these needs:

Superior Flatness:Achieved through 40% CO₂ foaming and precision forming, ensuring perfect printing and laminating results.
Excellent Strength-to-Weight Ratio:Light enough for easy handling and installation, yet rigid to prevent warping.
Outstanding Surface Compatibility:The substrate is optimized for high-end laminating and coating processes, guaranteeing premium visual and tactile quality in the final product.

Investing in our production line enables you to not only manufacture KT boards that meet general market standards but also, thanks toexceptional product consistency, superior base material performance, and excellent downstream process compatibility,compete in mid-to-high-end markets with stricter quality requirements. This translates to stronger competitiveness and greater profitability.
