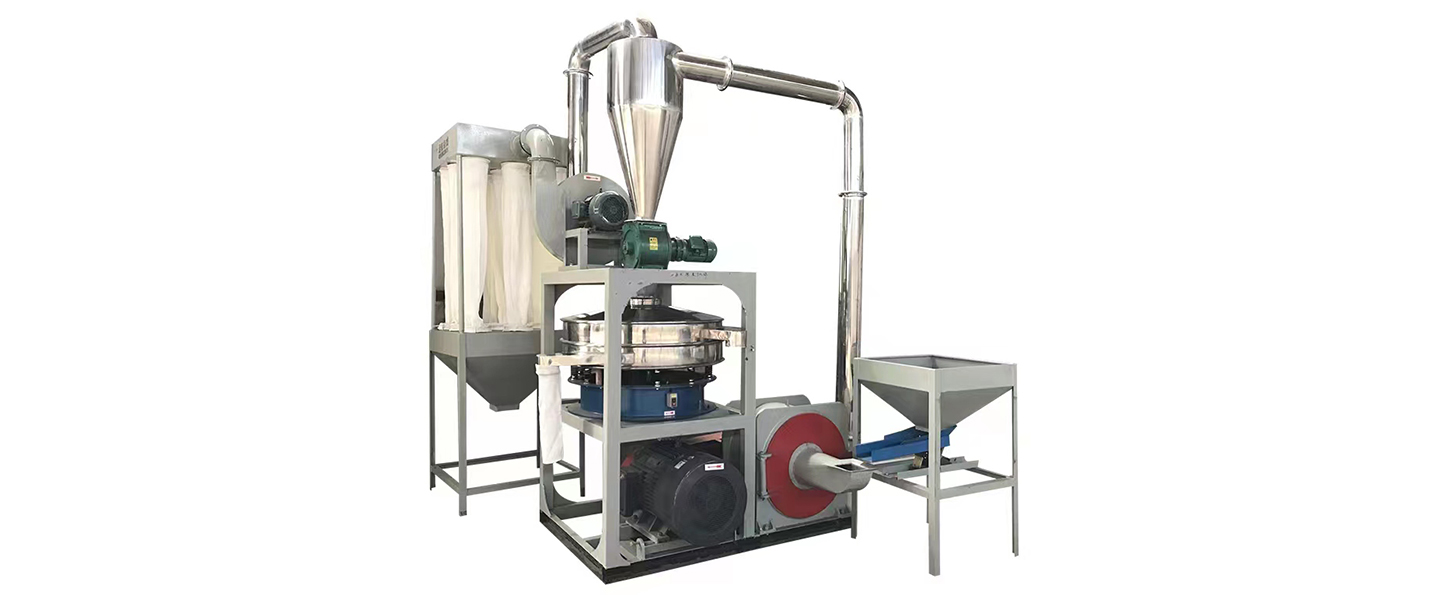

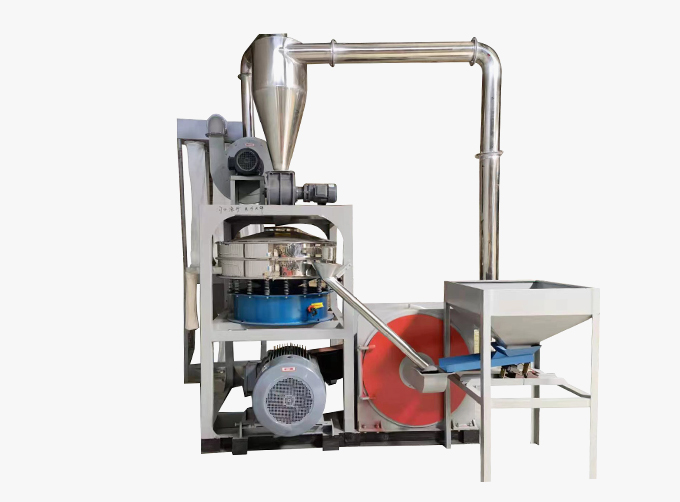

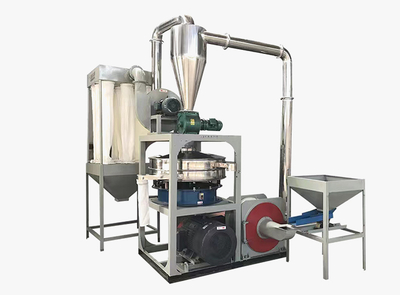

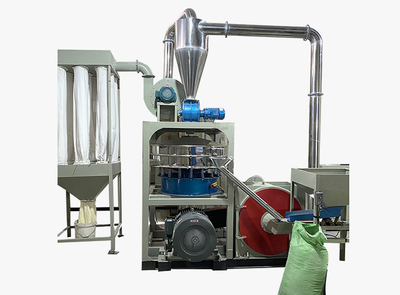

This equipment utilizes the shearing and impacting action between a high-speed rotating disc and a stationary disc to achieve efficient material size reduction.
Efficient Shear Crushing: The precise tooth profile design between the rotating and stationary discs creates a high-speed shearing zone. It delivers powerful crushing for lumpy, flaky, and fibrous materials (such as PVC scraps, rubber blocks, plastic recyclates), achieving excellent disintegration.
Wide Adjustable Particle Size Range:
The output particle size can be controlled within a relatively wide range (e.g., 20-120 mesh) by adjusting the disc gap, meeting the raw material particle size requirements of various downstream processes.
Strong Adaptability & High Throughput:
Robust construction allows tolerance to a certain degree of impurities. It features high processing capacity, making it suitable for large-scale recycling and primary crushing operations.
Air-Cooled or Water-Cooled Options:
Can be equipped with efficient cooling systems to prevent material softening or sticking to the blades due to frictional heat, ensuring continuous and stable operation.
Available Models
Model
Throughput (kg/h)
Description / Key Specs
MF-500
Medium-duty Disc Mill
Processing Capacity: 300-500 kg/h, Main Motor Power: 37-45 kW
MF-600
Standard-duty Disc Mill
Processing Capacity: 600-900 kg/h, Main Motor Power: 55-75 kW
MF-800
Heavy-duty Disc Mill
Processing Capacity: 1000-1500 kg/h, Main Motor Power: 90-132 kW
Note: Actual capacity depends on material characteristics and fineness requirements.
Typical Applications
Plastics Recycling Industry:
Primary crushing of large sprues/gates, rejected products, and film rolls.
Rubber Processing:
Crushing of used tire rubber blocks and rubber scraps.
Resource Recovery:
Preliminary volume reduction and crushing of non-metallic materials.
