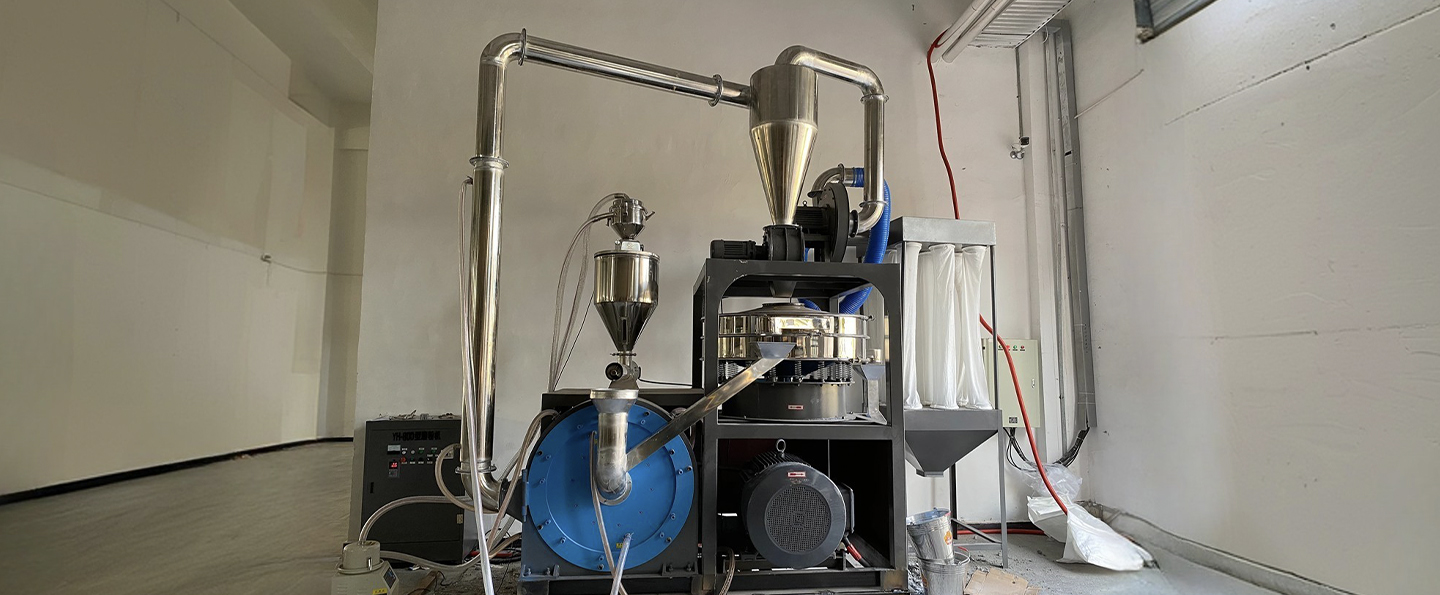

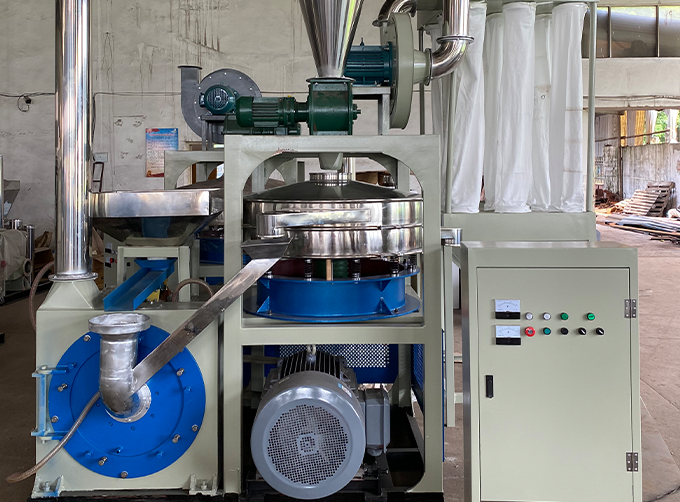

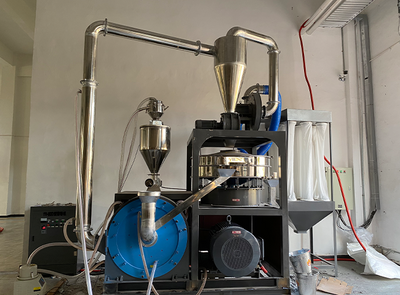

Plate Mill (Refiner)

This equipment performs compression, grinding, and refining on pre-crushed materials through the relative motion of two plates (one fixed, one rotating) with fine surface patterns, to obtain finer and more uniform powder.

Contact Us >

Collaborative Partners

Core Technical Features

Precision Grinding & Refinement:The plate surfaces undergo special hardening treatment and are designed with precise grinding patterns, enabling micron-level grinding of materials (fineness can reach 80-400 mesh or finer). The resulting product has a concentrated particle size distribution.

Temperature-Controlled Fine Grinding:

Equipped with precise plate gap adjustment and a highly efficient closed-loop cooling system (typically water-cooled). This strictly controls the grinding temperature, protecting material properties, making it especially suitable for heat-sensitive materials.

High-Surface-Area Product:

The resulting powder has a higher specific surface area and good flowability, significantly enhancing its performance in applications such as composite materials and coatings.

Low Noise & Low Wear:

Operates relatively smoothly. Wear parts (the plates) have a long service life, resulting in longer maintenance intervals.

Available Models

Model	Description / Key Specs	Description / Key Specs
MP-500	Precision Plate Mill	Grinding Fineness: 80-300 mesh, Main Motor Power: 30-37 kW
MP-600	High-Efficiency Plate Mill	Grinding Fineness: 100-400 mesh, Main Motor Power: 45-55 kW
MP-800	Large-scale Ultra-fine Mill	Grinding Fineness: 150-600 mesh, Main Motor Power: 75-110 kW

Note: Final fineness depends on material properties, feed particle size, and plate pattern.

Typical Applications

High-end Fillers & Masterbatches:

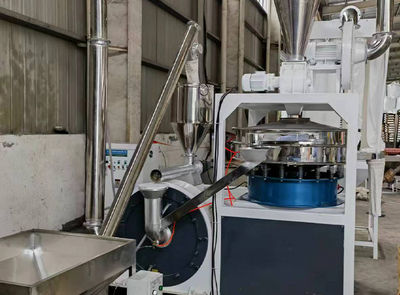

Ultra-fine grinding of fillers like calcium carbonate, talc, and pigments.

Fine Processing of Heat-Sensitive Materials:

Fine grinding of recycled powders such as PVC, PE, and engineering plastics.

Food & Specialized Industries:

Preparation of fine powders for specific food ingredients and minerals.

Comparison Summary & Selection Guidance

Feature	Disc Mill	Plate Mill (Refiner)
Core Principle	Shearing, Impacting, Tearing	Compression, Grinding, Friction
Output Particle Size	Medium to Fine (mainly 20-120 mesh)	Ultra-Fine (80-400 mesh and above)
Suitable Materials	Lumpy, tough/brittle materials, recyclates	Pre-crushed granules, brittle/medium-hardness materials
Process Focus	Efficient crushing, disintegration, high throughput	Fine grinding, particle size control, temperature protection
Typical Scenario	Resource recovery, primary powder production	High-value-added powders, filler processing, fine grinding
Reference Models	MF-500, MF-600, MF-800	MP-500, MP-600, MP-800

How to Choose

If your primary need is processing large-sized recyclates, pursuing high throughput, and obtaining medium-fine powders, the Disc Mill (MF Series) is a cost-effective and efficient choice.
If you need to perform deep refinement of pre-crushed materials, produce high-value-added ultra-fine powders, and strictly control processing temperature, the Plate Mill (MP Series) is the ideal solution.
