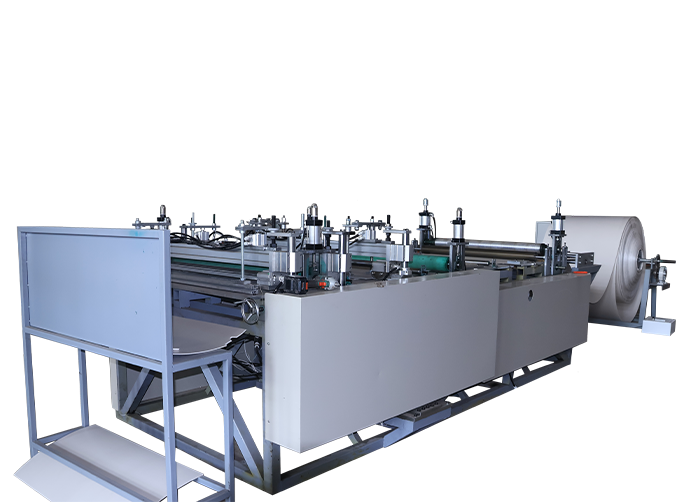

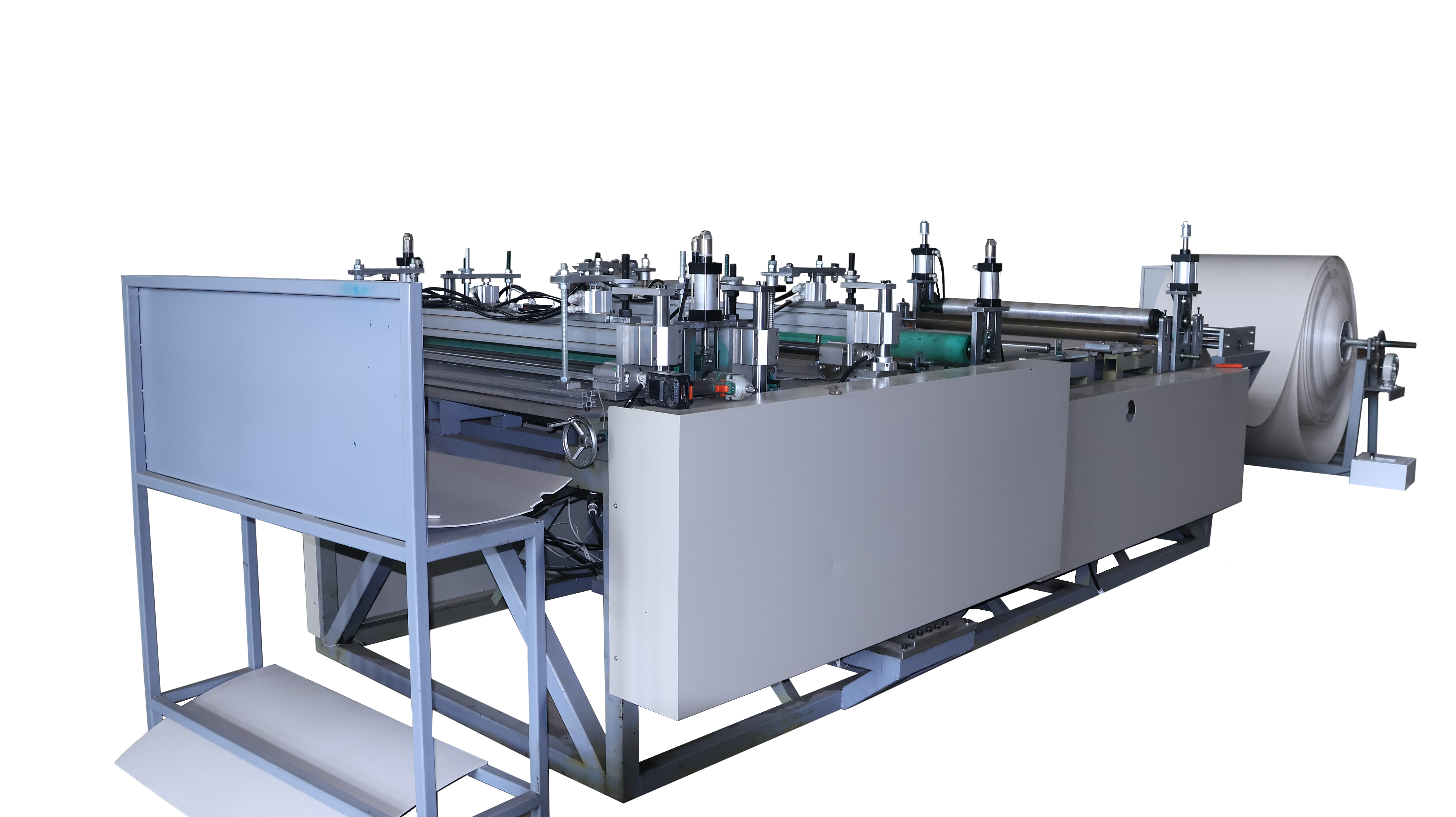

Fully Automatic Z-Folding Machine for Laminated XPS Boards

Fully Automatic Folding Machine

As the final process equipment in the PS underlayment production line, our fully automatic folding machine is specifically designed to efficiently and neatly handle the laminated boards. Through precise Z-folding, it converts large-format finished boards into compact, orderly stacks, significantly optimizing subsequent packaging, storage, and logistics efficiency.

Contact Us >

Collaborative Partners

Core Technical Features

Precision Positioning and Guidance System:
Equipped with high-precision photoelectric sensors and mechanical stops to ensure each board enters the folding machine in the correct position.Adjustable width guide channel design enables quick adaptation to boards of different sizes.

High-Efficiency Z-Folding Execution Mechanism:

Folding arms driven by servo motors ensure accurate and smooth movements, guaranteeing clear fold lines and consistent positioning with each operation.
Adjustable folding angle and pressure can be optimized according to the thickness and characteristics of different boards, preventing damage or rebound.

Synchronous Conveying and Counting Stacking System:

Folded boards are conveyed by synchronized belts and automatically stacked.
Integrated automatic counting function can signal or pause when the preset stack quantity is reached, facilitating bundling or packaging.

Intelligent Control and Seamless Integration:

Deeply integrated with the production line's main control system for automatic speed matching.
Touchscreen interface allows easy setting of folding patterns, stack quantities, and other parameters, with real-time production status display.
