PS Underlayment Laminating Machine with PID Heating

You are here: Home » Industry » Compounding » Laminating Machine

Laminating Machine for PS Underlayment Boards

Precision Secondary Foaming Oven

Our secondary foaming oven serves as the core molding equipment in the PS underlayment production line, specifically designed to apply precise heat treatment to the initially foamed sheets after gas release. Through accurate temperature control and air velocity management, it reactivates the blowing agents within the sheet, achieving perfect secondary expansion and final setting. This process ultimately forms the finished board with a stable, high-strength closed-cell structure.

Contact Us >

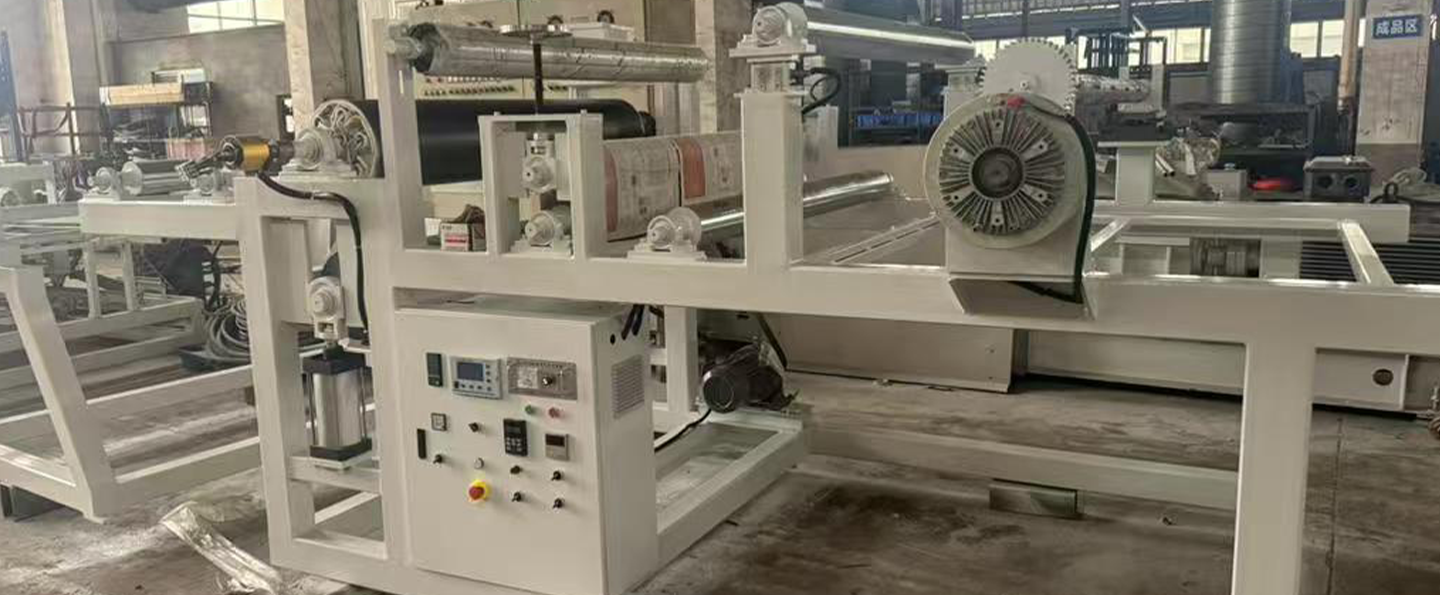

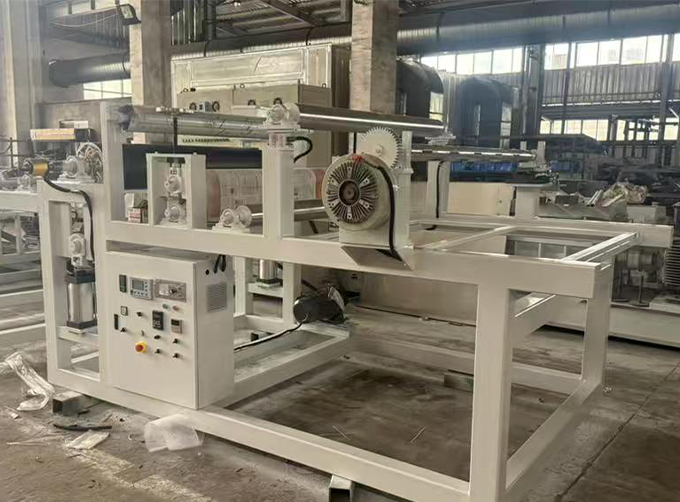

Mingxinzhi PS underlayment laminating machine with precision secondary foaming oven and control panel

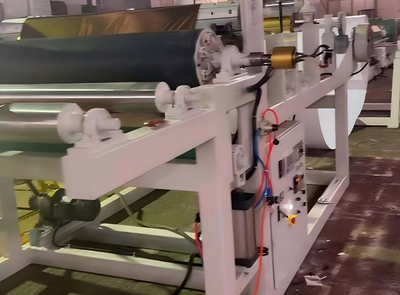

Industrial PS foam board laminator with multi-zone heating frame for stable closed-cell underlayment boards

Collaborative Partners

Core Technical Features

Uniform and Efficient Heating System: Utilizes multi-zone independently controlled heating units combined with a forced convection circulation system, ensuring stable and uniform hot air flow within the oven.
Guarantees consistent heating across the width and length of the sheet, fundamentally eliminating issues like deformation, shrinkage, or foaming density variations caused by localized heat unevenness.

Precise Temperature Control and Synchronized Conveyance:

Equipped with high-precision temperature sensors and an intelligent PID control system, maintaining the operating temperature stably within the required process The conveyor speed intelligently matches the temperature profile, ensuring each section of the sheet completes the foaming and curing process according to the preset optimal parameters.

Optimized Air Velocity and Pressure Design:

The air ducts are optimized using Computational Fluid Dynamics (CFD), enabling uniform air velocity and pressure across the entire working width.
This uniform heat exchange environment is crucial for forming a uniform, dense cellular structure and is key to achieving high compressive strength and excellent dimensional stability in the product.

User-Friendly Operation and Intelligent Monitoring:

Integrated into the production line's main control system, allowing operators to monitor the temperature, air velocity, and conveyor status of each zone in real-time.
Features process parameter storage and recall functions, supporting quick switching between different product recipes, and is equipped with a safety alarm system to ensure operational safety.

Updates of MXZ Machinery

As One of The Earliest Pioneers in The XPS Extrusion Machine Industry in China.
2025-08-30

Mingxin Zhi Machinery, established in 2006, has become the leading enterprise in China's XPS extrusion machine industry. As one of the earliest pioneers in the XPS extrusion machine industry in China, we have consistently adhered to the business philosophy of "craftsmanship, innovation, and integrit Read More
Join Us on Our Journey of Innovation And Excellence in The World.
2025-08-30

At Zhangjiagang Mingxin Zhi Machinery Co., Ltd., we offer more than just machinery. we provide solutions. Our expert team works closely with customers to understand their unique needs and challenges. Whether it's the icy landscapes of Moscow, the scorching heat of Cairo, the war-torn regions needin Read More
Mingxin Zhi Boasts An Exceptional R&D And Production Team.
2025-08-30

Mingxin Zhi boasts an exceptional R&D and production team. Looking back at the history of our production line innovations reflects the advancements in China's polystyrene foam extrusion technology. Our products are renowned for their efficiency and reliability, offering unparalleled precision in the Read More

Frequently Asked Questions (FAQ)

Q What is the maximum output of your production line?

A The maximum output can reach 3,000 kg/h. Actual output may vary based on specific configuration and process requirements.
Q Which blowing agents are supported?

A We support a wide range of blowing agents, including CO₂, ethanol, butane, DME, HFC, LPG, HFO, pentane, freon, etc. For the Russian market, we also provide solutions compatible with isobutane blends, with butane mixtures being generally recommended.
Q What is the density range of the products?

A The typical density range is 24–50 kg/m³. Under specific process conditions, ultra-low densities of 21–22 kg/m³ can be achieved.
Q What is the maximum compressive strength?

A The maximum compressive strength exceeds 1,200 kPa, meeting requirements for high-performance structural applications.
Q What is the available thickness range for XPS boards?

A The thickness ranges from 10–200 mm, and custom sizes are available upon request.
Q What is the width range of the XPS foam boards?

A The standard width is 600–1,200 mm. Non-standard widths can also be customized.
