The escalating global demand for durable, moisture-resistant building materials has driven manufacturers to scale synthetic panel production, forcing a critical choice between Wood Plastic Composite (WPC) and Polyvinyl Chloride (PVC) manufacturing capabilities. While the end products share visual similarities, the machinery required to produce them differs significantly. Investing in the wrong extrusion setup or failing to account for raw material behavior leads to excessive equipment wear, high scrap rates, and compromised board density.
This guide provides a technical breakdown of the engineering, operational, and financial differences between WPC and PVC extrusion systems to support an evidence-based machinery investment decision. We examine how material handling dictates equipment selection, why screw geometry matters, and how to align machine capabilities with your target market.
Material Handling Dictates Machinery: WPC production requires specialized drying and mixing equipment to manage wood fiber moisture, whereas PVC lines focus heavily on precise foaming agent dispersion.
Screw and Barrel Geometry: The abrasiveness of wood powder in WPC necessitates bimetallic, high-wear-resistant screws, altering the baseline specifications of a standard extrusion line.
Configuration Flexibility: A modern multilayer PVC foam board extrusion line offers scalable output for diverse applications, from lightweight signage to rigid construction materials.
Cost vs. Yield: While the initial PVC foam board production line price is often lower due to simpler raw material handling, long-term ROI depends strictly on target market applications (e.g., indoor cabinetry vs. outdoor decking).
Pure PVC formulations rely heavily on synthetic resins, stabilizers, and foaming agents. This mixture typically yields an average density between 0.45 and 0.60 g/cm³. The molecular grade compositions, specifically the K-value selection of the PVC resin, directly impact melt strength, viscosity, and the overall processing window. A lower K-value resin melts faster, providing a smoother surface finish for lightweight boards. Operators must monitor the melt pressure closely, as variations in the K-value will shift the required temperature profile across the extruder barrel zones.
WPC formulations introduce 20 to 30 percent wood fiber or agricultural waste into the mix. This addition increases the board density to an average of 0.62 to 0.80 g/cm³. On the factory floor, this means a standard WPC sheet weighs approximately 17.9 kg, compared to 15.8 kg for a pure PVC equivalent. The presence of organic fibers severely limits thermal stability. It narrows the chemical processing window during extrusion, requiring precise temperature control to prevent burning the wood particles. If the wood flour degrades, it releases gases that disrupt the cellular structure, leading to surface pitting and internal voids.
Parameter | Pure PVC Formulation | WPC Formulation (20-30% Wood Fiber) |
|---|---|---|
Average Density | 0.45 – 0.60 g/cm³ | 0.62 – 0.80 g/cm³ |
Standard Sheet Weight | ~15.8 kg | ~17.9 kg |
Thermal Stability | High (Broad processing window) | Low (Narrow processing window) |
Melt Viscosity | Moderate | High |
Shear rate requirements differ vastly between the two materials. PVC foaming demands gentle, consistent shear. If the shear is too aggressive, you risk premature cell collapse or polymer degradation. Operators must maintain a delicate balance to achieve a uniform cellular structure. The screw design for pure PVC typically features a lower compression ratio to prevent over-shearing the melt before it reaches the die head.
WPC screw designs require a completely different approach. The equipment needs aggressive mixing zones to ensure thorough fiber dispersion within the polymer matrix. Furthermore, wood powder is highly abrasive. You must use specialized bimetallic coatings on the screws and barrels to combat this wear. Standard screws degrade rapidly when processing WPC, leading to frequent replacements and extended downtime. A dedicated PVC foam board production line modified for WPC will often utilize tungsten carbide alloys on the screw flights to extend operational lifespan.
When configuring extrusion equipment, manufacturers choose between single-screw and conical twin-screw extruders. Conical twin-screw systems dominate rigid PVC processing due to their superior feeding and plasticization capabilities. The counter-rotating design forces the material forward efficiently, ensuring a consistent melt pressure at the die.
A modern multilayer PVC foam board extrusion line utilizes co-extrusion technology, typically in an A-B-A layer configuration. This setup allows you to lower core material costs by utilizing high-foaming recycled PVC in the center layer. Meanwhile, the outer skin remains unfoamed, providing a rigid, premium surface finish suitable for high-end cabinetry and signage. Co-extrusion requires synchronizing multiple extruders feeding into a single complex die block, demanding advanced PLC control systems to maintain layer ratios.
Downstream equipment is critical for dimensional stability. The vacuum calibration table maintains precise board thickness, controls elasticity, and ensures edge squareness. If the vacuum pressure fluctuates, the board will warp. Operators must continuously monitor the water temperature and flow rate within the calibration blocks to ensure uniform cooling across the entire board width.
The cooling curve is equally vital. PVC requires a specific cooling trajectory to lock in the cellular foam structure and maximize impact resistance. Rapid, uneven cooling introduces internal stress. Synchronizing the hauling and cutting units with the extrusion speed guarantees continuous, high-speed production without bottlenecking. The haul-off unit must apply consistent tension without crushing the newly formed cellular structure.
Verify vacuum pump pressure at the primary calibration block.
Adjust cooling water flow to maintain a gradient temperature drop.
Calibrate haul-off caterpillar speed to match extruder output exactly.
Inspect the cross-cut saw synchronization to prevent edge chipping.
The primary challenge in WPC production is moisture. Wood fibers naturally absorb ambient humidity. If this moisture enters the extruder, it vaporizes, causing surface defects, structural voids, and weakened board integrity. Even a moisture content of 2% can ruin a production run.
To prevent this, facilities must install high-capacity desiccant dryers and specialized hot/cold mixer combinations prior to extrusion. The wood powder must be dried thoroughly and then encapsulated by the melted polymer in the mixing phase before it ever reaches the feed throat. The hot mixer drives off residual moisture while blending the additives, and the cold mixer stabilizes the compound to prevent agglomeration before feeding.
You cannot run WPC efficiently through a standard PVC die. The internal geometry of the T-die must be modified to accommodate the higher viscosity and lower expansion ratio of the WPC melt. The flow channels must be wider and more streamlined to prevent fiber buildup. Dead spots in the die will cause the wood flour to stagnate and burn, leading to black streaks in the final product.
Additionally, WPC requires enhanced heating zones on the die lip. Wood-filled composites cool faster than pure synthetics. Maintaining higher temperatures at the exit point prevents premature cooling and ensures a smooth, defect-free surface. Operators must frequently calibrate the die lip heaters to compensate for ambient temperature changes on the factory floor.
Real-time quality monitoring prevents massive scrap generation. Operators assess cell structure uniformity and skin thickness directly off the calibration table. Visual inspections are paired with automated density checks to ensure the foaming agent is reacting correctly. A sudden spike in density indicates a failure in the foaming process or a drop in melt temperature.
Physical quality checks assess elasticity and impact resistance variances. Pure synthetics generally exhibit higher flexibility, while wood-filled composites offer greater rigidity but lower impact tolerance. Routine bending tests help operators adjust the formulation on the fly. Adjusting the ratio of impact modifiers can quickly correct brittleness issues detected during these inline checks.
Modern lines utilize non-destructive testing to catch hidden flaws. Laser thickness gauges continuously scan the board profile, alerting operators to minute thickness deviations. Ultrasonic sensors identify internal air pockets and sudden density shifts that visual inspections miss. Implementing these sensors drastically improves the final yield.
Deploy laser micrometers across the board width post-calibration.
Install ultrasonic flaw detectors to scan the core layer for voids.
Utilize automated vision systems to detect surface blemishes and color variations.
Integrate sensor data directly into the central PLC for automated die lip adjustments.
Indoor applications demand high surface smoothness, excellent paintability, and lightweight handling. A dedicated PVC foam board machine for wall panels must be optimized for specific industry-standard widths, such as 1220mm. It also requires the capability for rapid thickness adjustments, typically ranging from 3mm to 18mm, to accommodate varying architectural specifications.
The extrusion line must feature highly polished calibration plates to impart a glossy or semi-gloss finish directly from the machine. Downstream lamination units are often integrated to apply decorative films inline, reducing secondary processing steps. The haul-off unit must use non-marking rubber pads to protect the pristine surface finish required for cabinetry.
WPC equipment excels in producing heavy-duty materials for outdoor decking, formwork, and load-bearing structures. Because WPC sheets weigh significantly more than pure PVC, the downstream stacking and hauling systems must be reinforced. Standard suction cups and rollers may damage the extruded edges or fail to lift the heavier boards, requiring heavy-duty pneumatic handlers.
The cutting units on WPC lines require specialized carbide-tipped saw blades to handle the abrasive nature of the wood-filled composite. Dust extraction systems must be upsized to handle the increased particulate matter generated during the cutting and edge-trimming processes. Failure to manage this dust leads to premature wear on downstream linear bearings and sensors.
Evaluating the initial capital expenditure involves assessing the extruder, die head, downstream equipment, and automation controls. The baseline PVC foam board production line price is generally lower than a WPC setup. WPC lines carry a premium due to the necessary advanced drying systems and wear-resistant metallurgy required for the screws and barrels.

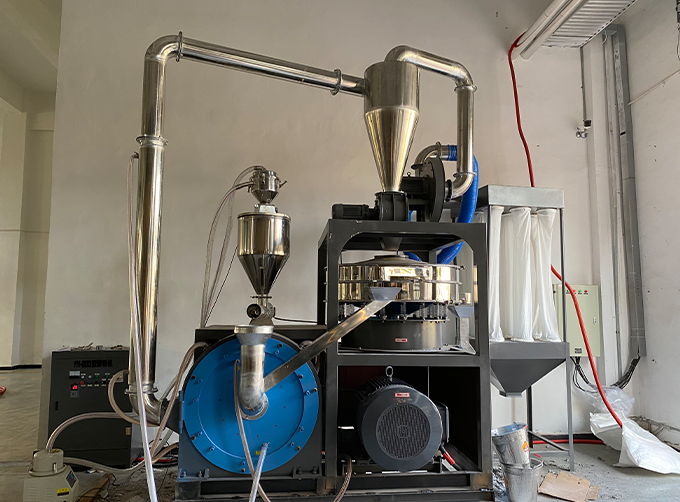

When calculating the investment, factor in the cost of auxiliary equipment. A pure PVC line requires standard mixing and chilling units. A WPC line demands high-capacity pulverizers for wood waste, massive desiccant silos, and heavy-duty material handling conveyors. These auxiliary systems significantly impact the total footprint and initial setup costs of the facility.
Operating expenditure varies wildly between the two systems. WPC drying requires substantially higher energy consumption. While raw wood powder is inexpensive, the specialized processing additives required to bind it to the polymer are not. Assessing the chemical processing ease and overall scrap rates of synthetic PVC versus organic-filled WPC systems is crucial to calculating the true cost-per-sheet.
Scrap recovery also differs. Pure PVC edge trim and rejected boards are easily granulated and fed back into the core layer of a co-extrusion line. WPC scrap is harder to reprocess due to the thermal degradation of the wood fibers during the first extrusion cycle. Excessive reprocessing of WPC leads to dark discoloration and a severe drop in mechanical properties.
Operational Factor | Pure PVC Extrusion | WPC Extrusion |
|---|---|---|
Energy Consumption | Baseline | High (Due to extensive drying) |
Scrap Reprocessing | High yield, easily recycled | Limited, prone to thermal degradation |
Maintenance Frequency | Standard intervals | High (Due to abrasive wear) |
Raw Material Handling | Standard silos and mixers | Complex drying and blending systems |
Inconsistent cell structure is a frequent risk. It often stems from ambient temperature fluctuations or inaccurate dosing of blowing agents. To mitigate this, facilities should implement gravimetric dosing systems. These systems ensure precise chemical ratios regardless of operator error. Automated melt pressure sensors also help maintain a stable extrusion environment.
If the foam collapses upon exiting the die, the melt temperature is likely too high, causing the polymer melt strength to drop below the threshold needed to contain the expanding gas. Operators must incrementally lower the barrel temperatures in the metering zone and increase the cooling capacity of the screw core.
Running high-percentage wood fiber formulations accelerates barrel wear. If left unchecked, this leads to pressure drops and poor plasticization. Mitigation requires establishing strict predictive maintenance schedules. Utilize ultrasonic thickness testing on barrels during scheduled downtime. Always maintain spare bimetallic screw sets on-site to minimize production interruptions.
Conduct weekly ultrasonic thickness checks on the extruder barrel.
Inspect die lip heaters daily for continuity and accurate temperature feedback.
Monitor extruder motor amperage; spikes indicate potential screw wear or material bridging.
Clean vacuum calibration slots after every shift to prevent material buildup and scoring.
The choice between WPC and PVC production lines requires strict alignment with target end-product specifications and raw material availability. Pure PVC lines suit manufacturers targeting lightweight, high-finish indoor applications. WPC lines serve those targeting high-impact, rigid, or outdoor structural markets.
Request comprehensive material trial runs with machinery manufacturers using your specific local raw materials.
Audit the energy efficiency of the proposed downstream cooling and drying systems before purchase.
Finalize your formulation recipes and additive requirements to ensure they match the machine's shear capabilities.
Establish a predictive maintenance protocol for screw and barrel wear from day one.
A: Conical twin-screw extruders are the industry standard for rigid PVC and WPC foam boards due to their superior mixing, feeding, and plasticization capabilities. Single-screw extruders are generally reserved for specific co-extrusion outer layers or softer polymer applications.
A: No. Running WPC on a standard PVC line will rapidly destroy the standard nitrided screws due to wood fiber abrasion. It will also result in poor board quality because standard lines lack the necessary upstream moisture drying equipment.
A: A multilayer co-extrusion line allows you to use cheaper, highly foamed or recycled materials in the core while applying a thin, rigid, high-quality unfoamed skin on the outside. This significantly reduces raw material costs while maintaining a premium surface finish.
A: Warping is prevented by maintaining strict temperature control in the vacuum calibration table and ensuring the downstream cooling curve is gradual and even. Uneven cooling introduces internal stresses that cause the board to bow after cutting.
A: WPC melt has a higher viscosity and a lower expansion ratio compared to pure PVC. The die internal flow channels must be wider to prevent fiber clogging, and the die lip requires higher heat to prevent the wood-filled composite from cooling prematurely.
